Sawtooth PEMF Mat Waveform & Mixed Multi-Waveform Systems

This final segment of our PEMF mat waveform series covers sawtooth waves and advanced mixed waveform technology. Review our previous articles to study square wave and sine wave PEMF mats.
[Read: Sine Wave PEMF Mat: Technology, Advantages & Industry R&D Barriers]
[PEMF Mat Waveform: Square Wave Working Principle & Characteristics]

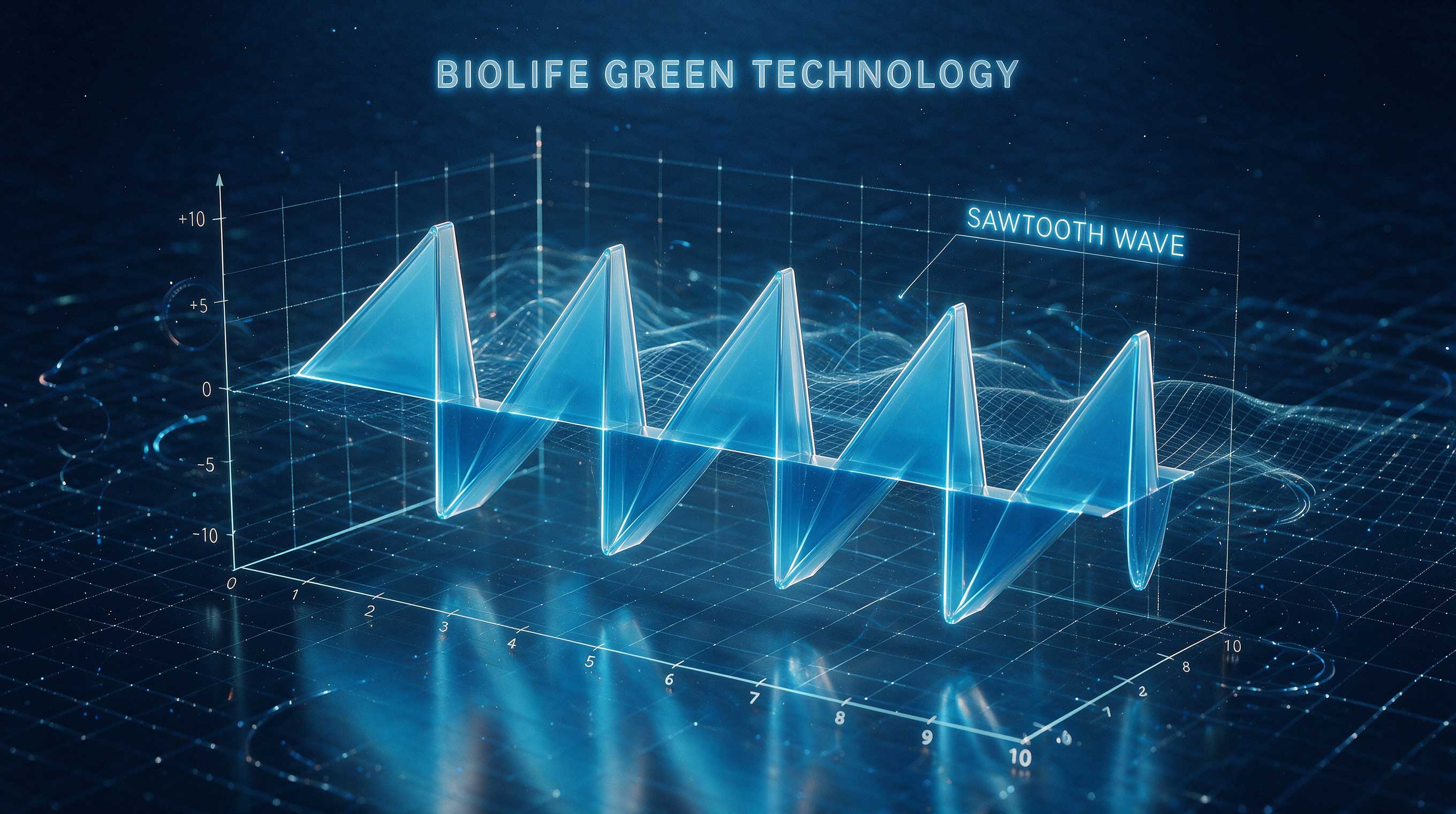

The sawtooth wave is an asymmetric periodic waveform widely used in PEMF. It features slow linear voltage shift followed by an instant sharp transition. Its shape matches saw teeth, hence the common industry name. Sawtooth waves work well for applications requiring strong but uneven stimulation.

Every full sawtooth cycle follows this fixed pattern: linear voltage rise or fall from minimum value to maximum value, then instant jump back to the starting baseline voltage level. Two mainstream sawtooth configurations exist for PEMF equipment: Ramp Up for slow rising edge + sharp falling edge, and Ramp Down for sharp rising edge + slow falling edge.

Sawtooth waves contain all odd and even integer harmonics. Amplitude reduces slowly as harmonic frequency values grow higher. Rich harmonic content delivers strong biological stimulation in PEMF mats.

Sawtooth Wave Advantages

• High dB/dt flux change rate, especially along the steep falling edge
• Diverse harmonic signals produce wider-ranging biological responses

Sawtooth Wave Drawbacks

• Asymmetric waveform may trigger slight tingling discomfort
• High-frequency harmonics easily create electromagnetic interference
• Overall comfort falls below that of half-sine PEMF mat waveform

Mixed Waveform Applications for Advanced PEMF Mats

Square waves serve as standard equipment for every basic PEMF mat. Sine waves and sawtooth waves demand higher levels of circuit R&D. Ordinary manufacturers rarely develop these two advanced waveform options.

Top-tier solutions mix multiple PEMF mat waveform types dynamically. Devices switch waveforms automatically according to daily biological rhythms. The system delivers matched magnetic energy at different times of day.

What’s Next in This PEMF Parameter Series

Future articles cover adjustable frequency, intensity and magnetic flux density. I will also share complete electrical control schemes for tuning PEMF mat waveform. These guides help you evaluate suppliers and design custom PEMF mat hardware.
